Lead-Lined Door Frames
Radiation Protection Products supplies high-quality lead-lined door frames with our lead-lined wood doors and hollow metal doors for complete protection against radiation. They can be used for adequate protection in various radiation shielding applications, including medical settings and airports. Our selection includes knock-down lead-lined door frames for existing walls and welded lead-lined hollow metal frames for new construction.
Specifications for Knock Down and Welded Lead-Lined Hollow Metal Frames

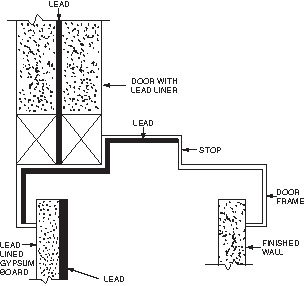

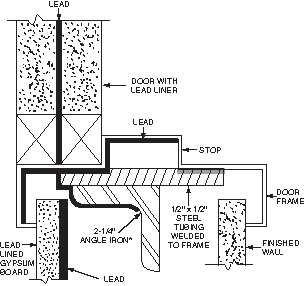

Lead-lined door frames typically feature lead on the door side of the jamb if the lead in the wall is on the same side of the partition. If the lead door and the lead in the walls are on opposite sides, the entire frame must be lined. We supply lead-lined hollow metal frames with the following specifications to meet your needs:
Maximum Size:
- Single – 4’0” x 12’0”
- Pair – 8’0” x 12’0”
Material:
- Cold Rolled Steel (standard)
- A60 Galvanized
Gages:
- 16 (standard)
- 14
- 12
Faces:
- 2” (standard)
- 4”
Head:
- 2” (standard)
- 4”
Anchors:
- Steel Stud “Z” (standard for welded frames)
- Wood Stud
- Masonry Tap
- Existing Opening €
- Compression (standard for KD frames)
Profile:
- Masonry
- Drywall Return (standard)
Rabbet Type:
- Double Rabbet (standard)
- Single Rabbet
Fire Ratings:
- 20
- 45
- 60
- 90
Frequently Asked Questions About Lead-Lined Door Frames
Why do door frames need their own lead lining if the door is already shielded?
A shielded door only protects where it directly covers the opening, so the frame around the door needs shielding to close the gap. RPP's frames are lined based on where the lead sits relative to the wall: if the lead in the door and the lead in the wall are on the same side of the partition, only the door side of the jamb needs lead. If they're on opposite sides, the entire frame has to be lined.
What frame configurations does RPP offer?
RPP supplies two frame types: knock-down lead-lined frames for retrofitting into existing walls, and welded lead-lined hollow metal frames for new construction. Frames are available in cold-rolled steel or A60 galvanized material, in 16, 14, or 12-gauge thickness, with face and head widths of 2" standard or 4". Anchor options include steel stud "Z," wood stud, masonry tap, existing opening, and compression, and frames can be finished with a masonry or drywall return profile, in either double or single rabbet. Fire ratings of 20, 45, 60, and 90 minutes are also available.
Contact Radiation Protection Products for High-Quality Lead-Lined Door Frames
Radiation Protection Products supplies lead-lined hollow metal frames for radiation shielding construction. We offer turnkey services and installation assistance to deliver complete radiation protection solutions that meet your specific requirements. Responding to your quote within 24 hours, we provide nationwide shipping, including Alaska and Hawaii, to ensure your products are delivered on time for your critical projects. Contact us for more information on our lead-lined door frames, or request a quote today.
